MANPA 2" BELT CUTTER - MASTER (5/8"-11)
MANPA 2" BELT CUTTER - MASTER (5/8"-11)
OVERVIEW
Model: MP21-2-M
The 2” Belt Cutter – Master consists of 3 different length extensions which are individually fitted to your own 4-1/2” angle grinder having a 5/8”-11NC center shaft. It also features multi angled positions from 90° to 180°. The circular (round) cutter will carve in any direction but discover new designs with any of the round, triangle and square cutters. Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you. They can be used in a myriad of general carving and texturing applications for all carvers and turners. Your versatility, with extended reach and angles, will allow you to greatly improve your productivity and creativity
This set includes 3 Extensions: 8”, 10-1/2” and 14” (200mm, 270mm, 348mm) Plus 1 – 2” Circular Cutter (6mm teeth)
We highly recommended thumb controlled ON/OFF slide switch angle grinders. Manpa does not perform as well with paddle or kill switch grinders due to the fitment of the belt cutter.
While many users are familiar with King Arthur’s Tools Merlin2 Miniature Angle Grinder variable speed control for precision 2” cutting, carving and shaping, these Manpa accessories, fitted directly to the more powerful 4-1/2” angle grinder, extends your carving reach out up to 14” (348mm) from the head of the grinder. If you’re looking for more power, many Merlin2 cutting and carving accessories fit this model
Important Note on Proper Attachment of any Multi Extension Carver to Your Angle Grinder
Included in every Belt Cutter and Multi Cutter are two adaptor rings with 42.50mm and 44mm diameter, that Manpa found fit all grinders listed under SPECIFICATION AND FEATURES. We also found that another size ring with 41.50mm, fits the KAT recommended FEIN angle grinder but is not included. This ring may also fit other 4½” grinders with a 41.50mm flange. Don’t get frustrated! Please check beforehand and call KAT. If you own a Fein or another grinder with the same diameter flange, you’ll need this adaptor ring MP21-R-SR41.50
WHAT'S INCLUDED
1. Belt cutter Housing & 2" Circular cutter 6mm
2. Body & Safety Cover
3. Wide Handle
4. Drive Gear
5. Adapter Ring 42.50 & 44.00
6. Star Wrench & L Wrench
7. Spanner
8. Timing Belt 200, 270, 348 XL
9. 2 Extension Tools (270, 348 mm)
Manpa 2" Belt Cutter - Master Instruction Manual

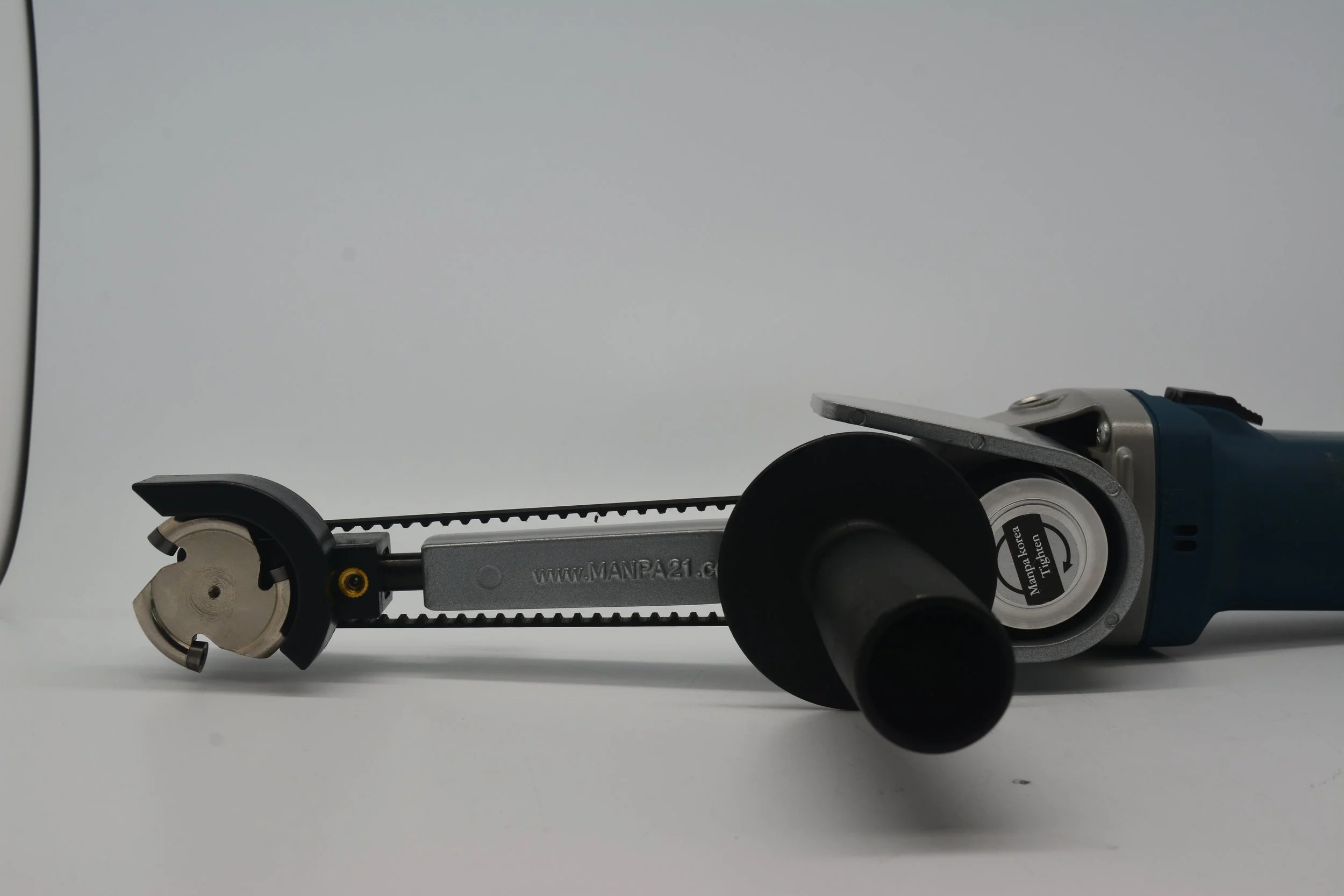

SPECIFICATIONS & FEATURES
Model MP21-2-M Angle Grinder Is Not Included
This is the most complete and smallest Multi Extension Carver of the series
It consists of 3 different length extensions which are individually fitted to your angle grinder and I – 2” Circular (Round) Cutter
This Multi Cutter only fits 4-1/2” (115mm) angle grinders with 5/8”-11NC spindle thread (center shaft) to primarily fit North American models.
A list of popular angle grinders with a highly recommended thumb controlled ON/OFF switch is shown in the Specifications and Features tab. Does not perform as well with paddle or kill switch grinders due to the fitment of the multi cutter.
While many users are familiar with King Arthur’s Tools Merlin2 Miniature Angle Grinder variable speed control for precision 2” cutting, carving and shaping, these Manpa accessories, fitted directly to the more powerful 4-1/2” angle grinder, extends your carving reach out up to 14” (348mm) from the head of the grinder
Many Merlin2 cutting and carving accessories fit this model if you’re looking for more power
Interchangeable using all 2” Manpa cutters, (round, triangle, square)
It also features multi angled positions from 90° to 180°, depending on the grinder
Highly recommended for professional carvers and turners
Your versatility, with extended reach and angles, will allow you to greatly improve your productivity and creativity
Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you
The circular (round) cutter will carve in any direction
Can be used in a myriad of general carving applications
Discover new designs with any of the round, triangle and square cutters
This set includes 3 Extensions to your 4-1/2” (115mm) Angle Grinder
8”, 10-1/2” and 14” (200mm, 270mm, 348mm)
Plus 1 – 2” Circular Cutter 6mm
Popular North American Grinders (Thumb Controlled ON/OFF Switch Strongly Recommended)
Bosch: 1375A, GWS8-45, GWS9-45, GWS18V-45
Makita: GA4030K, GA4030, GA4530K, GA4530, GA4534, GA4530X, 9556NB, 9557NB, 9558PB, 9557PB, 9565PCV, GA4542C, XAG042Z, XAG09Z, XAG11Z, XAG16Z, XAG20Z, XAG17ZU, XAG21ZU.
DeWalt: DCG405B, DCG412B, DWE4011, DWE4012, DWE4120, DWE4120N
Milwaukee: 2783-20(22,22HD), 2781-20(21,22,22HD), 2980-20(21-22), 2981-20(21,22)
Hitachi: G12SE2 Porter Cable: PC750AG
